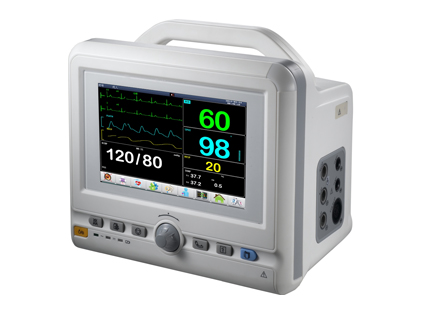

TR-500 Series veterinary patient Monitor
Release time:2015-07-10 Author:admin Source:





1.Built-in thermal recorder, high-capacity lithium battery,
shock anti-interference ability.

2.Modular design, high-resolution display ECG waveform
animals, respiratory waveform, oxygen saturation curve,
while monitoring the animal ECG, respiration, noninvasive
blood pressure, oxygen saturation, body temperature, etc.,
with sound and light alarm and the limit alarm setting function.

3.Can store 400 groups of non-invasive blood pressure data,
and a list of heart rate, body temperature, oxygen saturation,
respiration rate of non-invasive blood pressure during detection,
and store up to 96 hours of trend playback.

4.High accuracy of non-invasive blood pressure measurement
module, high accuracy, good repeatability

5.Dedicated digital oximetry devices to ensure oxygen
measurement accuracy.

two hours.
◆ Support DC power input, and adapt to a variety of environmental conditions.
◆ External recorder can print waveform, data and other information in real time.
◆ Support external EtCO2 interface, can be connected to the mainstream and sidestream
 CO2 module, to facilitate the clinical needs.
◆ Support the drug concentration in titration calculations and event functions customized
 and record.
◆ 32 TCP / IP network connection, composed of central information system.
◆ Can be fixed on wall, desktop, carts, ambulances, and others.
◆ External mobile transmitter module can be connected to central monitoring system.
◆ Desktop mounting bracket,two channel TEMP,tow channel IBP,wireless networking
 module,GPRS transmitter module.


 TR-500series Tianrong veterinary monitors can meet all kinds of medical institutions for dogs, cats,apes, rabbits, monkeys, pigs,sheep and other animals need to implement monitoring of vital signs and medical research.Thoughtful design concept - opening up without losing compact, more intimate and friendly, the new overall tone, everything is attentive. The product is cheap, plentiful accessories, low maintenance costs, is the ideal animal clinical monitoring equipment.
